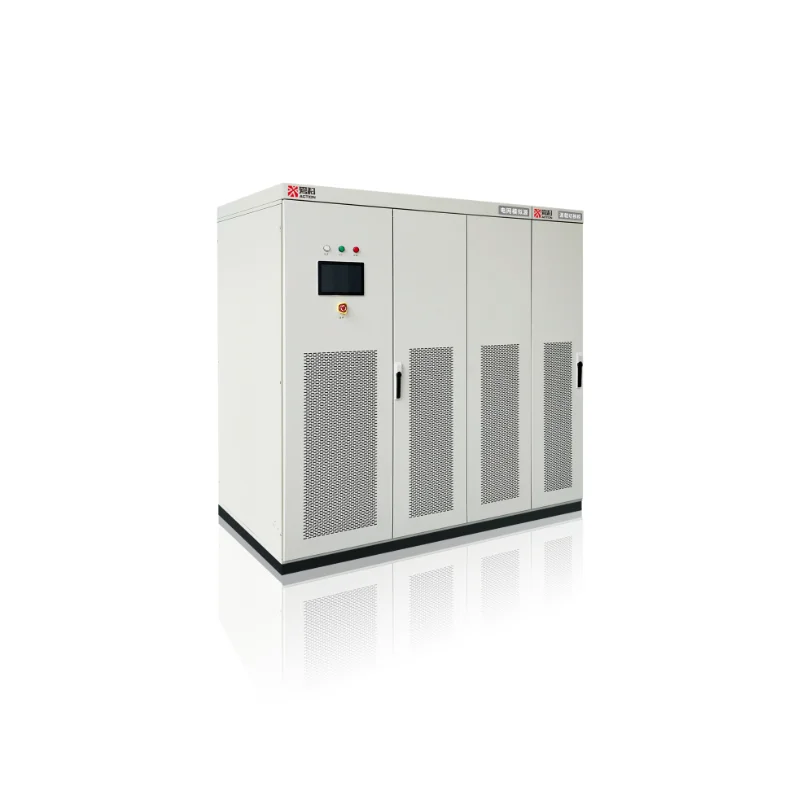

Output Power [kVA]: 600
Voltage Range [V] @ L-N: 0-860
Frequency Range [Hz]: 40-70
Max. Current [A] @ 3 phase: 572
Size (WHD) [mm]: 4400x1950x1200
Weight [kg]: 4170
Load Mode
Linear Load:
+ CC: Current, power factor, load type, current slope, output waveform
+ CP: Apparent power, power factor, load type, power slope, output waveform
Nonlinear Load: Current, power, peak factor, current slope, power slope
Zero-voltage Start: Simulate on-load start, switch seamlessly to CC or CP after start, with configurable switching condition
Voltage
Voltage Distortion Limit: Uthd <10% below 20th
Current
Resolution: 0.01A
Accuracy: ±0.2% F.S. @ CC mode
Waveform: sine, square wave, triangular wave, clipping wave, customized waveform
Current Distortion: <2%@50Hz@ full load under rated voltage
Current Slew Rate: 10%~90% nominal current > 1A/μs
Response Time: <1ms@10%~90% nominal current
Frequency
Range: 40–70Hz
Accuracy: ±0.01Hz
Harmonic Injection
Order: 50th@50Hz/60Hz
Content:
+ Max 40% for 2-10 single harmonics, and no more than 40% for 2-10 total harmonics
+ Max 20% for 10-20 single harmonics, and no more than 20% for 10-20 total harmonics
+ Max 10% for 21-30 single harmonics, and no more than 10% for total harmonics
+ Max 5% for 31-50 single harmonics, and no more than 5% for total harmonics
Power
Resolution: 1VA
Resolution (VA): ±0.5% F.S. @ CP mode
Power Factor
Power Factor: -1 to 1(resistance inductance, resistance capacity and current direction can be set)
Resolution: 0.01
Crest Factor
Scope: 1.414 to 4
Resolution: 0.001
* Specification of AC source mode is same with AGS series
