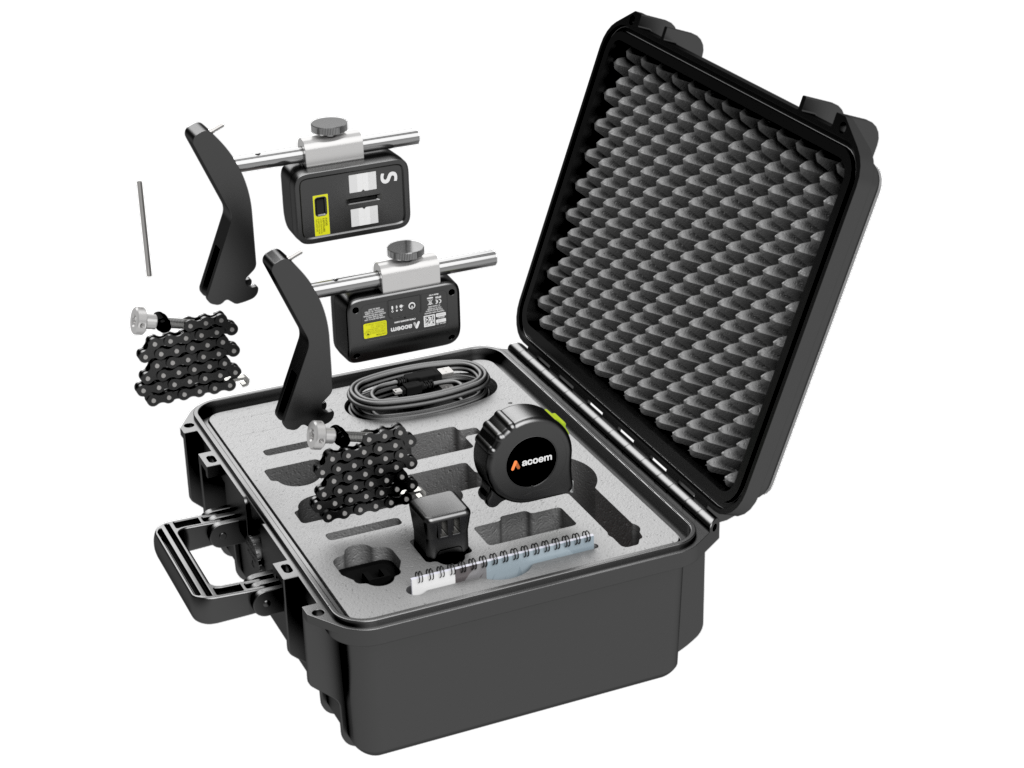

ACOEM AT-100 Shaft Alignment

Housing Material: Anodized Aluminum frame and ABS plastic

Operating Temp: 0 to 50°C (32 to 122°F)

Storage Temp: -20 to 70°C (-4 to 158°F)

Long term storage temp: Room temp. 18 to 28°C (64 to 82°F)

Battery Charging Temp: 0 to 40°C (32 to 104°F)

Relative humidity: 10 - 90%

Weight: 222 g (7.8 oz)

Dimensions: 94 mm x 87 mm x 37 mm (3.7 in x 3.4 in x 1.4 in)

Environmental protection: IP54

Laser: 650 nm class II diode laser

Laser power: < 1 mW

Measurement distance: Up to 2 m

Detector: Digital line sensor

Detector length: 20 mm (0.8 in)

Detector resolution: 0.01 mm

Measurement accuracy: 1% ± 1 digit

Inclinometer resolution: 1°

Inclinometer accuracy: ±3°

Wireless communication: Class I Bluetooth transmitter

Communication range: 10 m (33 ft)

Connectors: 1 USB Mini port;

Charging: 5V, 0.5A

Power supply: High performance Li Ion battery or external power.

Operating time: 12 hours continuous use (measuring)

Battery Charging time(system off, room temperature):8h

Battery Capacity: 10.4 Wh

LED indicators: Wireless communication, laser transmission and battery status indicator
