Needle diameter: Ф3mm, Ф4mm, Ф5mm (can be customized according to customer requirements)
Length of positive and negative plates: 90mm~650mm
Width of positive and negative plates: 28mm~58mm
Diaphragm width: 30mm~60mm
Tape width: 8mm~16mm
Winding accuracy: ≤±0.3mm (alignment error between diaphragm and positive and negative plates)
Speed: 5~7 pcs/min
Air source: 0.5~0.7 MPa
Power source: AC220V 50HZ
Power: 1.0KW
Equipment size: 1600mm × 1300mm × 1500mm

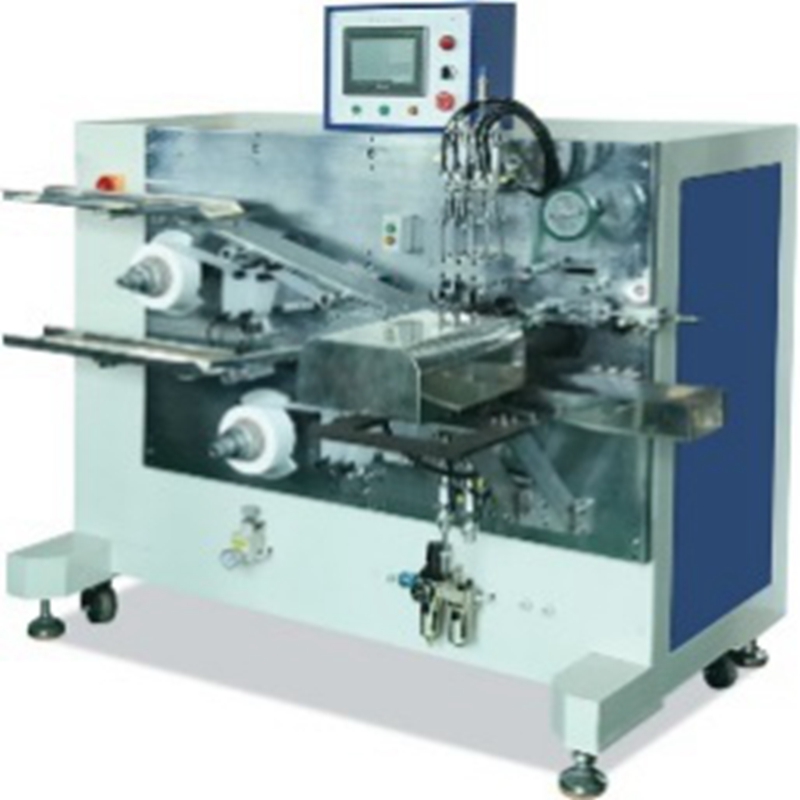

1. Suitable for semi-automatic dedicated production of cylindrical lithium-ion batteries
2. Automatic diaphragm release, automatic winding, automatic tape termination and automatic unloading;
3. Diaphragm is supplied with constant tension, and the cell tension is consistent;
4. The pole piece guide plate can easily adjust the width, adapt to a 5. Using man-machine interface to control the machine, the operation is simple and intuitive;
6. Automatically alarm and display the fault location when abnormality occurs, which is convenient for processing;
7. The operation is easy and simple to learn, and productivity can be formed as soon as possible.
