Volume: 33L
Temperature control range: RT+10~250℃
Temperature resolution: 0.1 ℃
Temperature control accuracy: ± 0.5 ℃
Carrier: 1PCS
Vacuum degree: <133Pa
Vacuum pump: With lower cabinet, built-in 2L vacuum pump
Power Supply: AC220V/50Hz
Rated power: 1.0KW
Liner size: 320X320X320
Overall dimensions: 630X460X1030
Note: The above specifications and models can be customized desktop, external vacuum pump.:
Options:
SS-stainless steel (304, 316L)
SC-Independent Temperature Limiting Thermostat
PC-fuji pressure controller
AI-Manual Third Party Gas Intake Valve
FS-Dry Filter Tank (Liquid Water Filter Tank)
LP-LCD LCD Intelligent Program Controller (Segments 18 and 30)
PR-Paperless Recorder
TP-Printer (Heat Sensitive, Panel, Temperature Recording)
PLC-temperature, vacuum, inflation, vacuum automatic linkage PLC control system
TD-built-in vacuum pump lower cabinet
VP-Optional Vacuum Pump (2XZ-2, 2XZ-4, 2XZ-8, DM-2, DM-4, DM-8)
LZ-condenser, single-tank or double-tank condenser
BS-Biology (temperature control range 50~65 ℃)
HC-load-bearing partition (load-bearing 50kg, standard load-bearing 15kg)
WD-temperature can be 300 ℃, 400 ℃, 500 ℃
Application

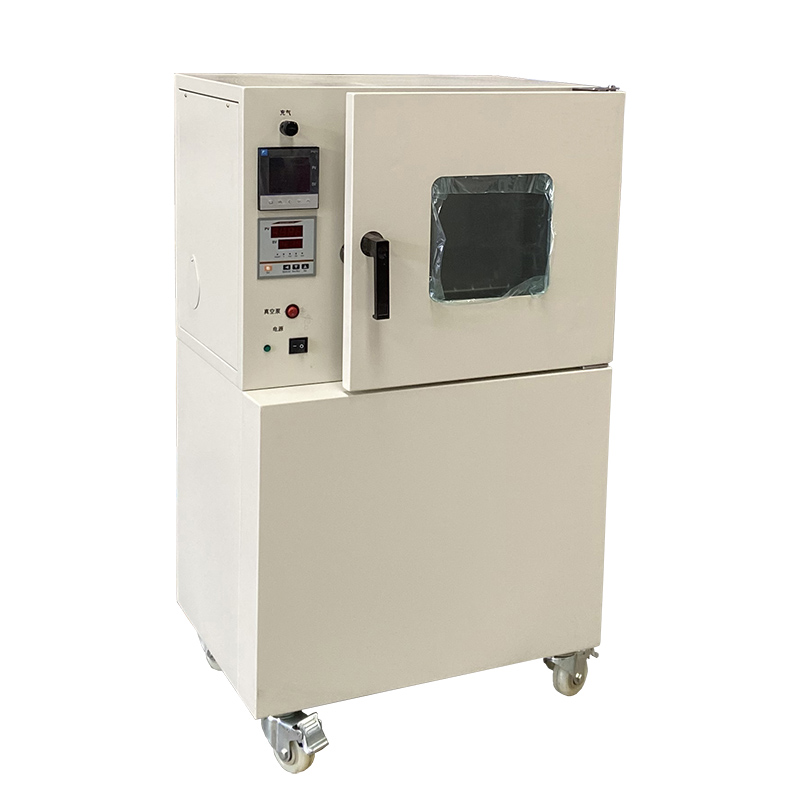

Laboratory vacuum drying oven is an instrument commonly used in scientific research, manufacturing, and processing fields. It is used to dry, degas, cure, heat treat, and perform other operations on samples under high vacuum or atmospheric conditions.
*Structure: Typically composed of a vacuum chamber, heating system, vacuum pump, control system, and observation window.
*Material: Made of stainless steel or aluminum alloy, with excellent corrosion resistance and high temperature resistance.
*Heating system: Uses electric heating, microwave heating, or radiation heating to heat samples. Temperature control is precise and can be adjusted according to actual needs.
*Vacuum pump: Used to remove gases from the vacuum chamber, creating a high or low vacuum environment. Different vacuum pumps can be selected according to experimental needs.
*Control system: Enables the setting and automatic control of parameters such as temperature, time, and vacuum level, and is easy to operate with good stability.
*Observation window: Equipped with an observation window, enabling the convenient observation of sample status and real-time monitoring.
Features
1. Streamlined design, electrostatic plastic spraying on the surface of cold-rolled steel plate on the shell, stainless steel inner container, and easy cleaning without dead angle design.
2. Radiant heating mode to make the temperature division uniform and stable, so that dry articles are heated evenly.
3. The equipment adopts microcomputer PID control, with automatic temperature control, timing, over-temperature alarm, liquid crystal display, accurate temperature control, stable and reliable.
4. The box door is equipped with a large viewing angle observation window as standard, and heat insulation technology is adopted to make the temperature of the observation window within a reasonable range.
5. The studio adopts fixed shelf ear rest, which can adjust the height and quantity of shelves.
6. The use of insulation technology and insulation materials, so that the temperature in the box is not easy to lose, so that it reduces energy consumption and energy saving.
7. A set of condenser is installed at the front end of the vacuum pump. The water or solvent volatilized by a large amount of materials in the box can be condensed and stored in a liquid state in the tank. Only a small amount of water or solvent is sucked into the vacuum pump to prevent the vacuum pump from rapidly halogenating and protecting the vacuum pump. The condenser is mainly used to collect water and solvent and protect the vacuum pump. (This option).
