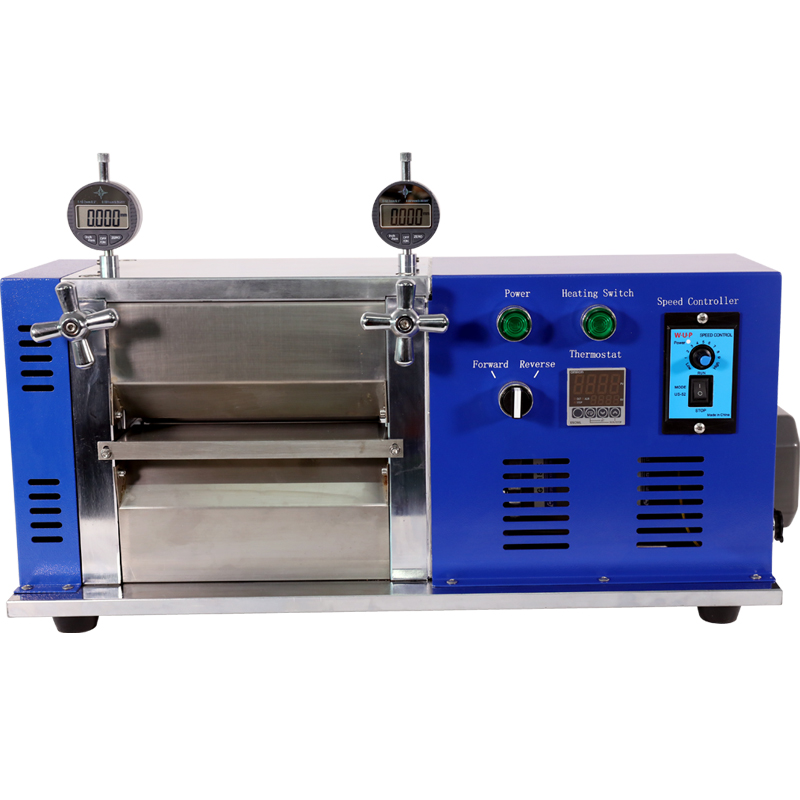

Roller size: Diameter Φ96mm × 200mm
Roller cylindricity: ≤±2um
Roller hardness: HRC62
Roller finish: Above 0.4
Rolling thickness: 0～2mm, adjustable gap
Roll placement: Vertical placement
Tablet thickness: Speed can be adjusted
Power source: AC220V/50Hz, power 120W
Feeding speed: 0～40mm/s
Dimensions: L385mm × W240mm × H355mm
Equipment weight: 65KG
1. The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
2. Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
3. High rolling precision, roller cylindricity≤±2um.
4. Vertical design, convenient for feeding and rolling of strip material.
5. Adopt gear meshing rotation to realize the roller pressing.
