Applicable Battery Specifications: Suitable for polarity detection of various finished battery cells
Detection Range: 500 × 380 mm (customizable)
Efficiency: 50–80 PPM
Operating Environment: Temperature range 26℃±5℃, humidity ≤82%, clean environment with no strong electromagnetic interference
Maximum Equipment Dimensions: L1000 × W650 × H1900 mm
Total Weight: ≈55kg
Equipment Power Supply: AC220V±10%, 50Hz; Power 300W
Description

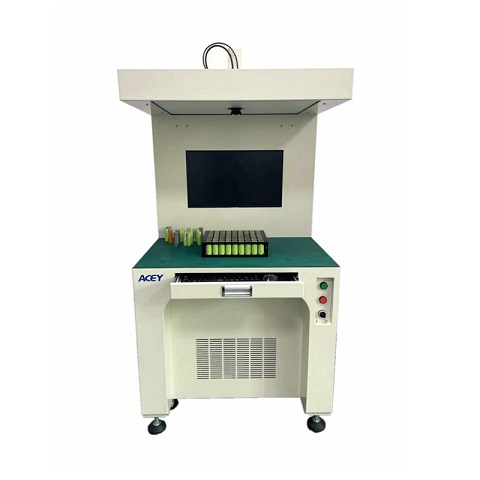

ACEY CCD-5038 is a multi-purpose CCD visual inspection system using machine vision technology based on CCD industrial camera. It is suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks. CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.
Working Process
1) Through the CCD computer system, set the measurement mode and accuracy parameter range, adjust the parameters, and the equipment starts to monitor and enter the working state.
2) Action process: manual loading of the whole box of batteries → start CCD detection button → CCD system analysis → → CCD system discrimination (OK/NG) → material receiving personnel to receive materials
3) The equipment is equipped with sound and light alarm, fault alarm, etc. Operating parameters can be freely set according to the actual requirements of customers.
