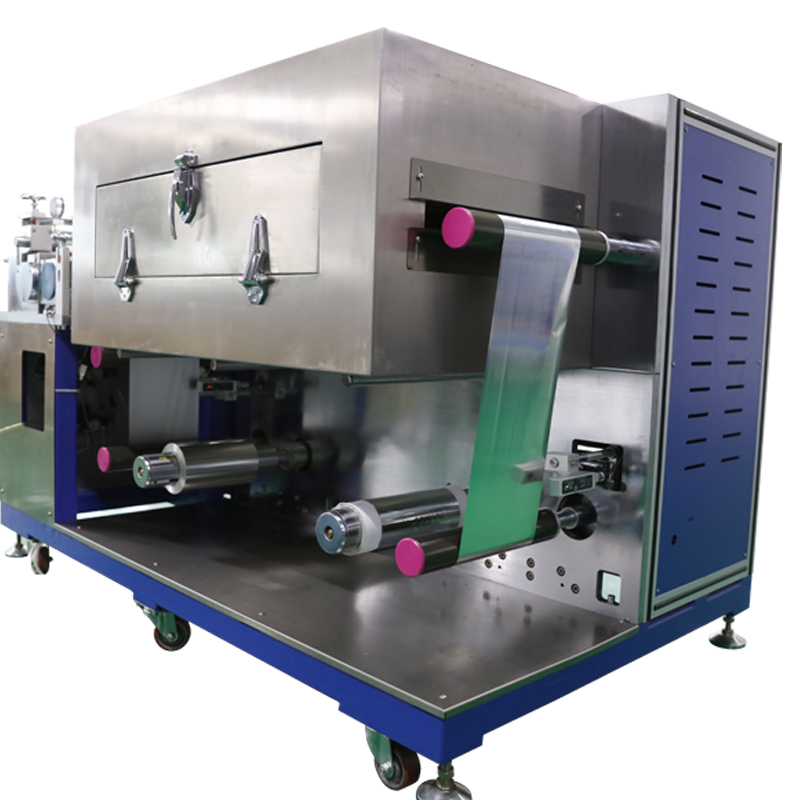

Power supply: Single-phase voltage AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 5KW
Gas source: 0.5-0.8MPa compressed air
Use environment: Recommended ambient temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference
Coating type: Continuous coating, intermittent coating
Guide roller width: 300mm
Coating width: Max.250mm
Mechanical speed: Max.800mm/min
Coating accuracy: Better than ±3μm (Edge error ±5μm)
Coating thickness: Depending on the size of the paste, 30~200μm
Thickness adjustment: Manual free adjustment, dial indicator display accuracy 1μm
Coating length: Single piece Max.5000mm, blank 10~100mm, accuracy ±0.5mm
Drying unit: Standard hot air drying (infrared drying and UV curing can be customized), single section 800mm long
Drying temperature: Max.150±5℃, can be set
Tension control: Max.60N
Reel diameter: 250mm
Winding accuracy: ±0.5mm
Dimensions: L1750 × W1000 × H1200mm
Weight: Approximately 900KG with caster base
1. It can be switched freely to realize continuous and intermittent coating;
2. Substrate tension control, stable tape travel, equipped with deviation correction device;
3. Hot-air oven, upper and lower double-sided blowing, high-quality drying effect;
4. Three-roll transfer coating, with a wider coating window;
5. Comma squeegee measurement, with precision adjustment mechanism, to obtain high coating precision;
6. PLC control, touch screen operation, convenient and easy to use;
7. Optional solvent recovery processing device
