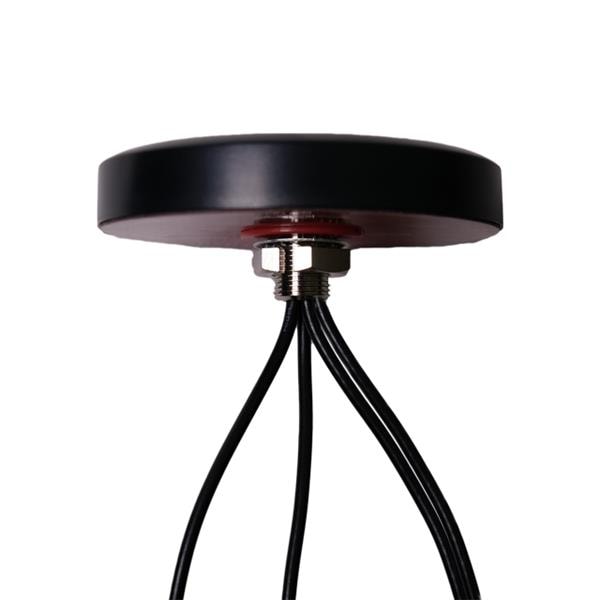

Abracon AECW0801C09S-3000S MIMO External Puck Screw Mount SMA

Gain: 2 dBic, 2.5 dBi, 2 dBi, 3 dBi

VSWR: 1.5, 3, 2.5

Style: Round

Length: 16.3 mm

Diameter: 46.6 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174 x 3, LMR100

Application: M2M, Smart City, Transportation, Smart Agriculture, Geolocation, Tracking

Mounting Style: Direct / Permanent Mount

Number of Bands: 5 Band

Center Frequency: 829 MHz, 1.5815 GHz, 2.2 GHz, 2.44175 GHz, 5.3625 GHz

Mechanical Style: Module

Maximum Frequency: 5.825 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
