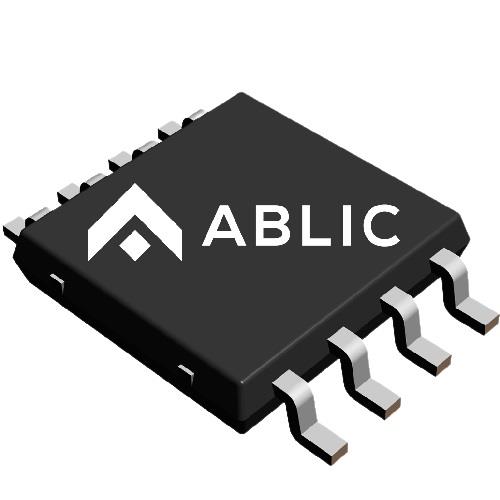

ABLIC S-19630AB0A-K8T2U Operational Amplifiers LOW INPUT OFFSET VOLTAGE CMOS OPERATIONAL AMPLIFIER

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Qualification: AEC-Q100

Mounting Style: SMD/SMT

SR - Slew Rate: 450 mV/us

Number of Channels: 2 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 4 V

Ib - Input Bias Current: 10 nA

Operating Supply Current: 500 uA

Vcm - Common Mode Voltage: 36 V

Ios - Input Offset Current: 10 nA

Output Current per Channel: 16 mA

Vos - Input Offset Voltage: 50 uV

GBP - Gain Bandwidth Product: 1.2 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 25 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 110 dB

PSRR - Power Supply Rejection Ratio: 130 dB
