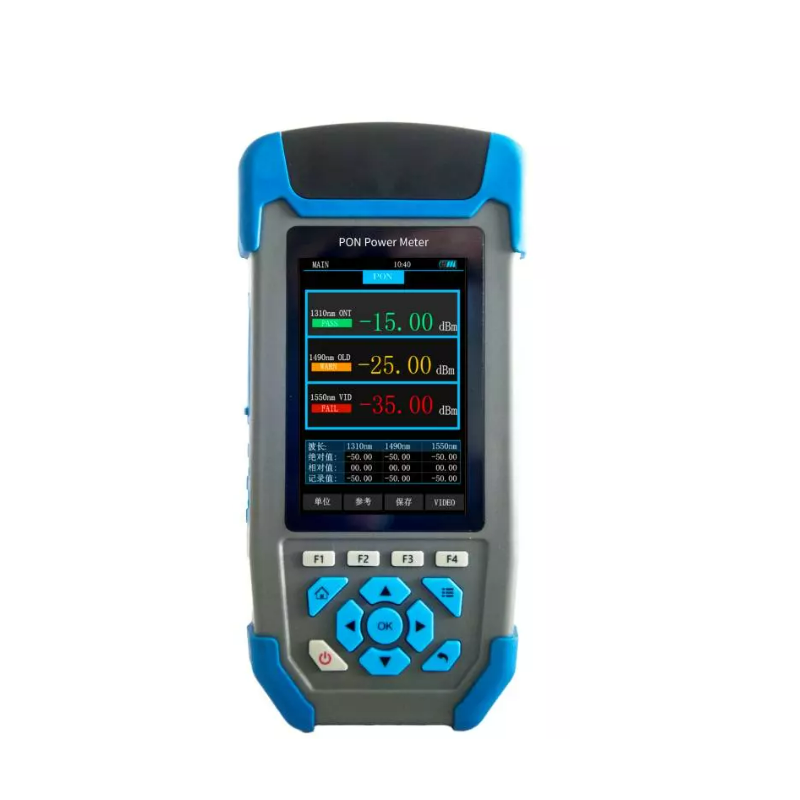

3S Telecom PPM-C Power Meter

PON module

Wavelength: 1310nm Upstream / 1490nm Downstream / 1550 Downstream

Passband: ±50nm / ±15 / ±10

Measurement Range: -40~+10dBm / -40~+12dBm / -40~+25dBm

Isolation@1490nm: - / >40dB / >40dB

Isolation@1550nm: >40dB / >40dB / -

Uncertainty: <±0.5dB

Polarization Dependent Loss: <±0.25dB

Linearity: ±0.1dB

Through Insertion Loss: <1.5dB

Display Resolution: 0.01dB

Connector: SC/UPC

Visual Fault Locator Module

Wavelength: 650±20nm

Power: 10mW

Mode: CW/1Hz/2Hz

Connector: 2.5mm universal connector

Optical Power Meter Module

Measurement range: -70 ~ +10dBm/ -50 ~ +26dBm

Uncertainty: ≤0.5dB

Calibration wavelength: 1310/1490/1550/1625nm

Unit: dBm、dB、xW

Linearity: ≤0.1 dB

Measurement Accuracy: 0.01dB

General Information

Display: 3.5 inch TFT LCD display, high resolution 320*480

Data Interface: Micro USB

Power Supply: Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A

Battery Working Time: >20h

Operating Temperature: -20～+50℃

Storage Temperature: -30～+70℃

Relative Humidity: 0～95%（RH）

Weight: 395g

Dimension: 188×88×44mm

Package: PON power meter, User manual, Certification report, 5V power adapter, Micro USB cable, PC software CD
