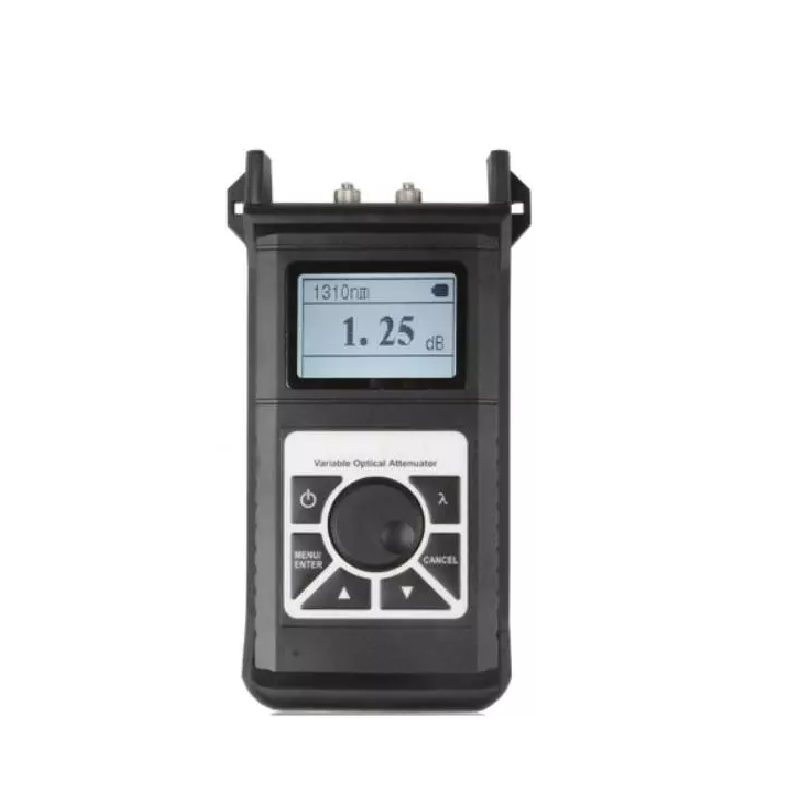

3S Telecom OVA-A Digital Variable Optical Attenuator (2~60dB)
Manufacturer: 3S Telecom Model: OVA-A - Contact
Attenuation Range: 2~60dB
Resolution: 0.05B
Fiber Type: SMF 9/125um; MMF 62.5/125 optional
Attenuation Wavelength Range: 1260~1650um
Calibrated Wavelength: 1310/1490/1550/1625nm; 850/1300nm optional
Linearity: ±0.5dB
Repeatability: ±0.2dB
Accuracy: ±0.8dB
Insertion Loss: <2dB
Return Loss: >35dB (typical: 40dB)
Max Input Power: +20dBm
Display: Lattice 128*64 black and white, white background light
Rechargeable Batteries: 8.4V
Power Supply Adapter: 8.4V
Operating Time: 40 hours
Connector: FC/PC
Operating Temperature: 0°C to +40°C
Storage Temperature: -10°C to +60℃
Relative Humidity: 0%~85% (non-condensing)
Dimension: 180mm*90mm*36.5mm
Net Weight: 427g
