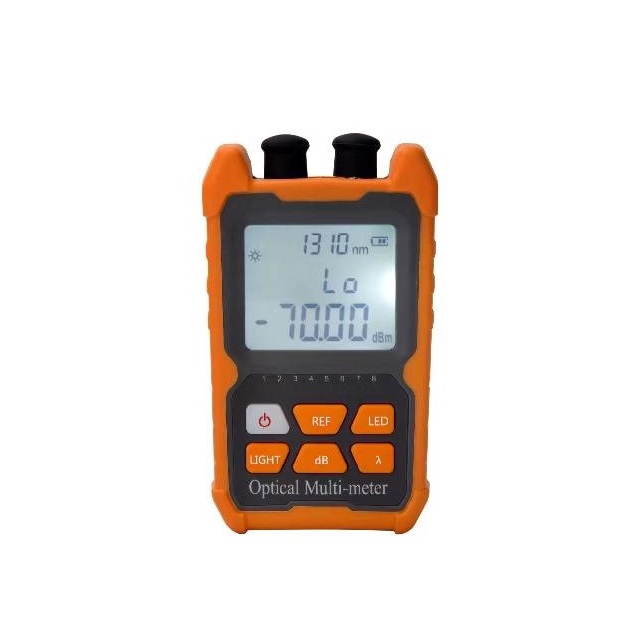

Optical Power Meter (OPM)
Wavelength Range: 800-1700nm
Fiber Connector: 2.5mm universal connector (FC/PC, SC/PC optional)
Type of Detector: InGaAs
Measurement Range: -70~+6 dBm
Uncertainty: ±5%
Calibration Wavelength; 850/980/1300/1310/1490/1550/1625/1650nm
Display Resolution: Linear display: 0.1%, logarithmic display: 0.01 dBm
Visual Fault Locator (VFL)
Working Wavelength: 650nm
Output Power: 1mW (default), 10/20/30/50mw (optional)
Operating Temperature: -10~+60°C
Storage Temperature: -30~+70°C
Automatic Shutdown Time: 10min
Battery Working Time: ≥72 giờ
Instrument size: 112 x 66 x30mm
Power Supply:
VFL output power 1mW: 2pcs AAA alkaline batteries
VFL output power >1mW: 1pcs rechargeable lithium battery
Weight: 140g
Packing List: Main unit x1pcs, battery x1set, strap x1pcs, user manual x1pcs
