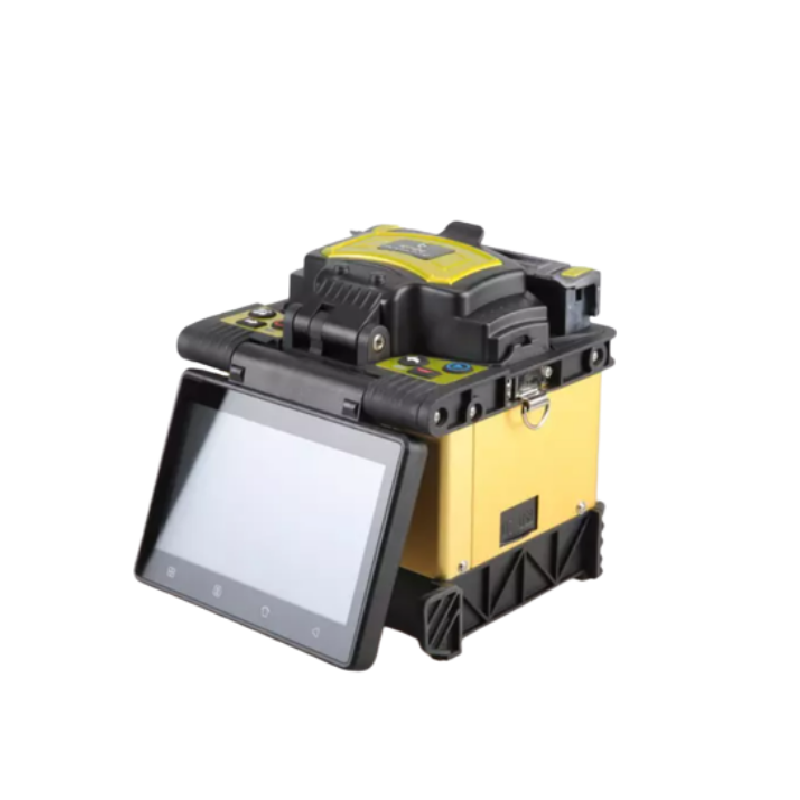

3S Telecom FOFS-60A Fiber Optic Fusion Splicer

Applicable fibers: SM(ITU-T G.652/G.657),MM(ITU-T G.651), DS(ITU-T G.653),NZDS(ITU-T G.655)

Typical Splicing loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss: >60dB

Diameter of Cladding: 100 -150μm

Diameter of Coating: 100 - 1000μm

Fiber Cleaved Length: 10-16mm (coating diameter< 250μm), 16mm (coating diameter: 250-1000μm)

Auto-heating: Available

Operation Mode: Manual, Automatic

Typical splicing time: 7 seconds

Tube heating time: 10-15seconds adjustable with 2mm tube; 14-19seconds adjustable with 4mm tube; 17-23seconds adjustable with 6mm tube

Magnification: 400X(X or Y view), 200X(X and Y view)

Viewing Method: High resolution cameras

Display: 4.3 inch color LCD monitor

Storage of Splice Result: 10000 results

Loss Evaluation: Available

Tension test: 1.8-2.2N

Interactive Interface: GUI menu interface, easier operation

Battery capacity: 5200mAh Li-battery

Power supply: Power charging adaptor; Input: AC100-240V(50/60HZ), output: DC11-13.5V

Electrode life: More than 4000 ARC, replaced conveniently

Data Interface: USB 2.0

Operating condition: Altitude: 0-5000m, Humidity: 0-95%, Temp: -10℃～+50℃, Wind speed: max 15m/s

Dimension: 131mm(L) x 146mm(W) x 152mm(H)

Weight: 1.53kg (Including battery)
