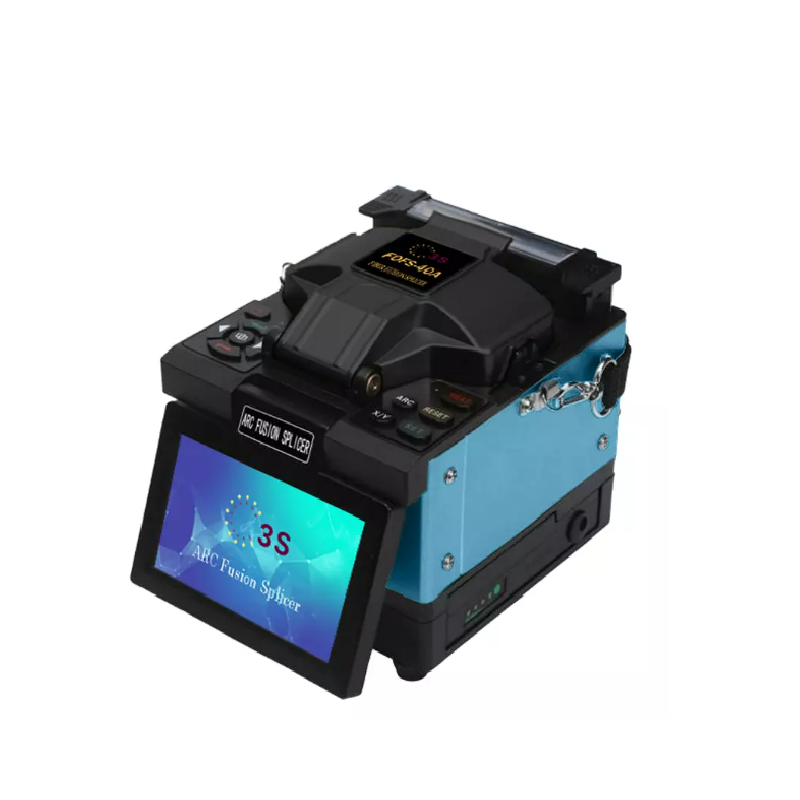

3S Telecom FOFS-40A Fiber Optic Fusion Splicer

Dimension: 130*154*132mm, weight: 1.95kg (battery included)

Applicable fiber: SM(G.652), MM(G.655), DS(G.653), NZ DS(G.655), BI(G.657)

Diameter of fiber: Cladding:80-150μm, coating:100-1000μm

Fiber cleaved length: 8-16mm

Splicing time: 6s

Tube heating time: 15s

Protection sleeve length: 60mm, 40mm

Storage of splice result: 3000 results

Typical splice loss: SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB

Return Loss: >60dB

Operating condition: Altitude: 0-5000m, Humidity: 0-95%, Temperature: -20℃～+50℃;Wind speed: max 15m/s

Storage temperature: Humidity: 0-95%, temperature: -40-+80℃

Fiber view magnification: 300X(X or Y view), 100X(X and Y view)

Terminals: Mini USB, Ethernet

Electrode life: 5000 ARC discharges

Power supply: Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V; battery capacity:5200mAh
