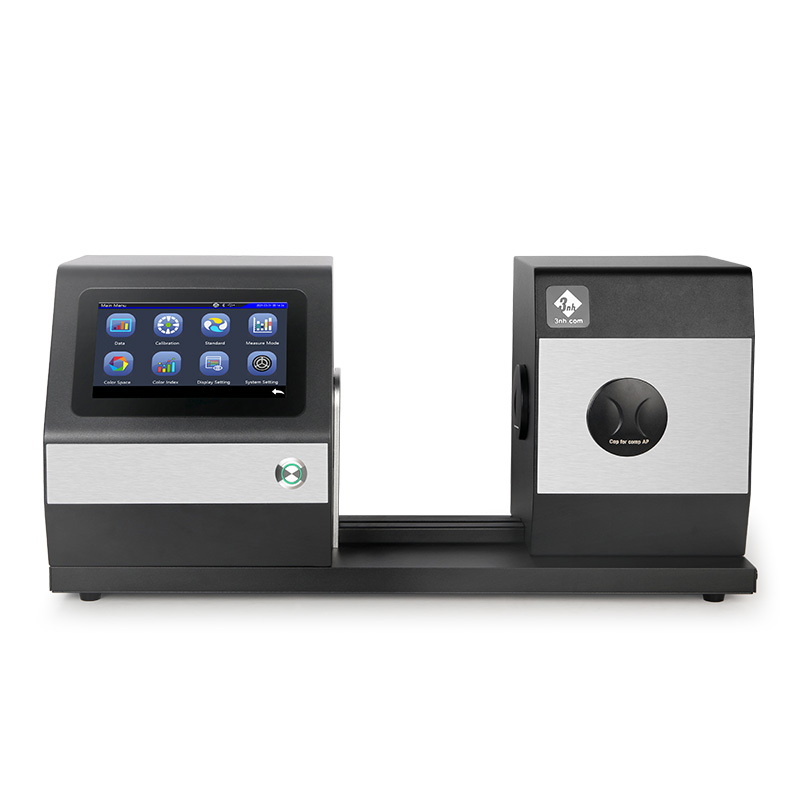

3nh YH1210 Haze Meter (0-100%; Transmittance Rate+Haze)

- Measure Transmittance Rate + Haze

Integrating sphere size: Φ 154 mm

Light source: 400~700 nm combined LED light source

Sensor: PD array detector, satisfying CIE V(λ)2 degree visual response

Measurement range: 0-100%

Measuring aperture: Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single aperture)

Sample size: Thickness less than 105 mm

Observer angle: 2°

Light source: D65,A,C

Measurement time: About 1.5s

Resolution: 0.01 unit

Dimensions (LxWxH) = 487x260x298mm

Weight: Approx. 8.0 kg

Power supply: 24V 3A , DC power adapter

Illuminant life span: > 3 million measurements in 5 years

Display: TFT True Color 7 inch, Capacitive Touchscreen

Interface: USB, Print Serial

Data storage: 1,000 samples, 20,000 samples

Language: Simplified Chinese, Traditional Chinese, English

Operating temperature: 0~40°C (32~104°F)

Storage temperature: - 20~50°C (-4~122°F)

Standard accessories: Power adapter, user manual, quality management software (download), USB cable, 0% calibration box, measuring aperture

Optional accessories: Micro printer, Test Fixture, Standard haze sheet, Footswitch
