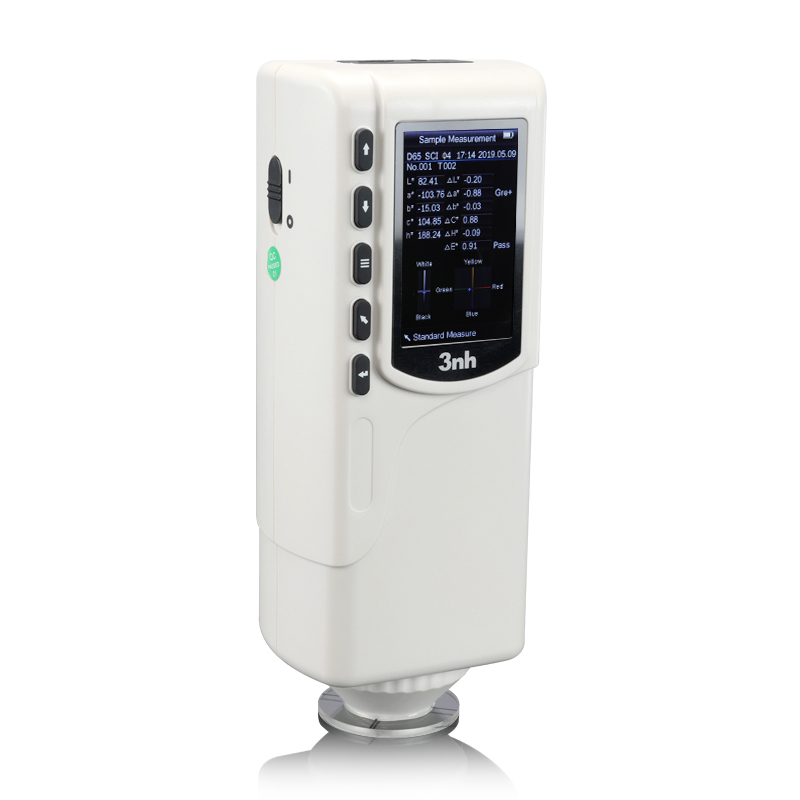

3nh NR60CP+ Precision Colorimeter (8°/D; Φ8mm; Φ4mm)

Optical Geometry: 8°/D(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978.

Illumination: LED white light

Detector: Silicon photoelectric diode

Measuring Aperture: Φ8mm flat aperture; Φ4mm sharp aperture

Dimension: 205×67×80 mm

Weight: 500g

Power source: Rechargeable lithium-ion battery 3.7V at 3200mAh

Lamp Life: TFT 2.8 inch

Interface: USB

Data Memory: 100pcs standards 20000pcs samples

Operating Environment: 0~40℃ (32~104°F)

Storage Environment: -20~50℃ (-4~122°F)

PC Software: CQCS3 software

Standard Accessory: Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.

Optional Accessory: Micro Printer, powder test box

Datasheet
