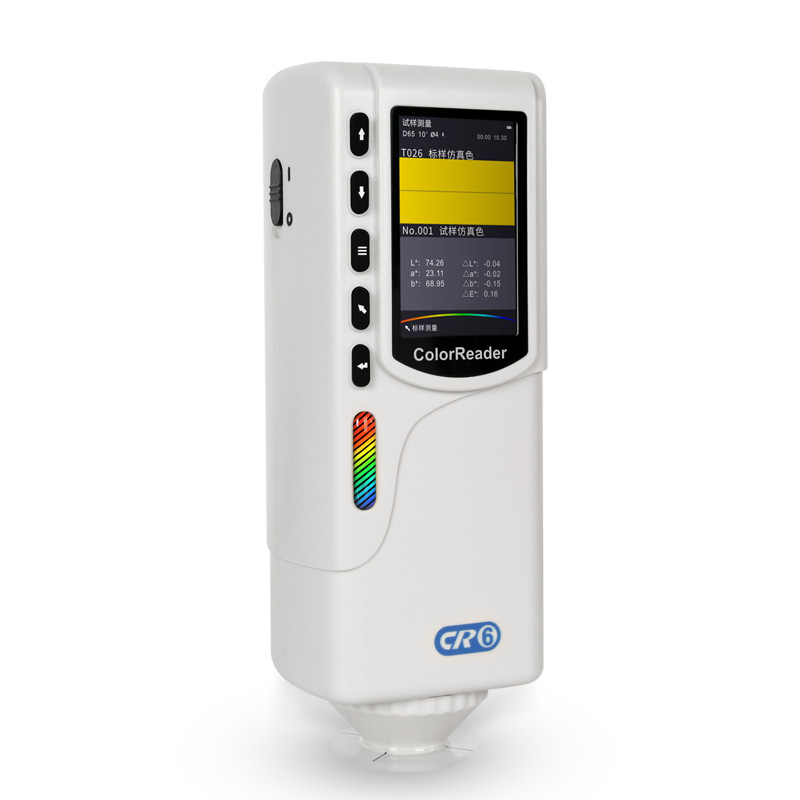

3nh CR6 Color Reader (Industrial Enhanced)

Integrating sphere size: Φ40mm

Illuminant: 360nm-780nm Combined LED Lamp

Spectroscopic Method: Plane-Grating

Sensor: CMOS sensor

Wavelength Range: 400～700nm

Measuring Aperture: Φ4mm

Color Spaces: CIE LAB XYZ Yxy LCh CIE LUV s-RGB HunterLab βxy DIN Lab99

Observer Angle: 2°/10°

Light source: D65 A C D50 D55 D75 F1 F2(CWF) F3 F4 F5 F6 F7(DLF) F8 F9 F10(TPL5) F11(TL84) F12(TL83/U30)

Measuring Time: 1.2s

Dimension: 205x67x80mm

Weight: 500g

Battery: Rechargeable Li-ion battery 3.7V @ 3200mAh

Light source lifespan: 5years more than 1.6 million times measurements

Display screen: TFT true color 2.8inch@ (16:9)

Interface: USB (charge only); Bluetooth 5.0 Button

Language: Chinese, English

Working Temperature range: 0~40℃, 0~85%RH (No condensation), Altitude: lower than 2000m

Storage Temperature range: -20~50℃, 0~85%RH (No condensation)

Standard Accessories: Power adapter, manual, MOBCCS APP software (download from official website Android platform), USB cable, whiteboard box, wrist strap, Φ4mm flat aperture

Optional Accessories: USB mini printer, powder test box
