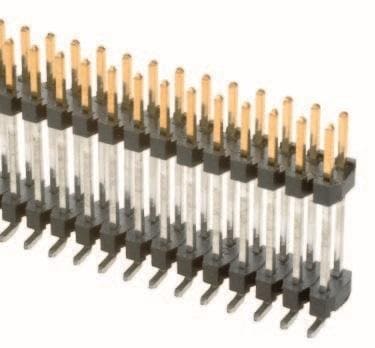

3M Electronic Solutions Division 951234-7622-AR Pin Strip 34P PIN STRP HDR 2R RA PTH 10U AU

Pitch: 2 mm (0.079 in)

Application: Wire-to-Board

Row Spacing: 2 mm (0.079 in)

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic

Termination Style: Solder Pin

Mating Post Length: 4.4 mm (0.173 in)

Flammability Rating: UL 94 V-0

Number of Positions: 34 Position

Insulation Resistance: 500 MOhms

Termination Post Length: 2.8 mm (0.11 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
