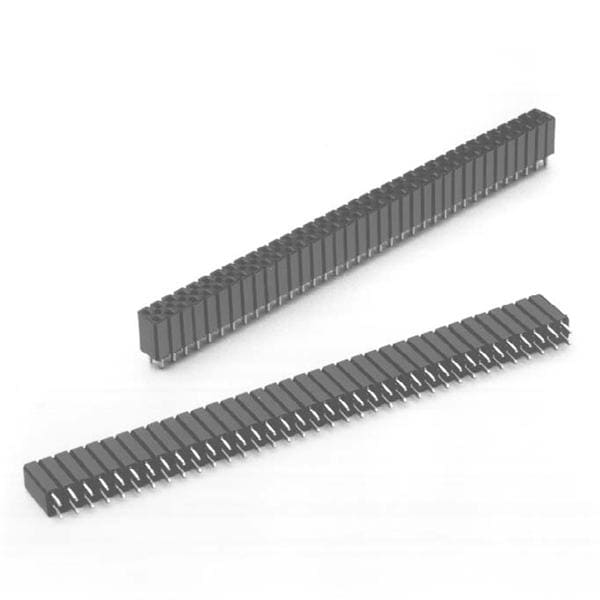

3M Electronic Solutions Division 929852-01-20-RA Socket 2ROW BDMNT SCKT AU STRT SLDR TAIL

Pitch: 2.54 mm (0.1 in)

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 1 g

Housing Color: Black

Contact Gender: Socket (Female)

Current Rating: 2 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polyester

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 40 Position

Termination Post Length: 3.18 mm (0.125 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
