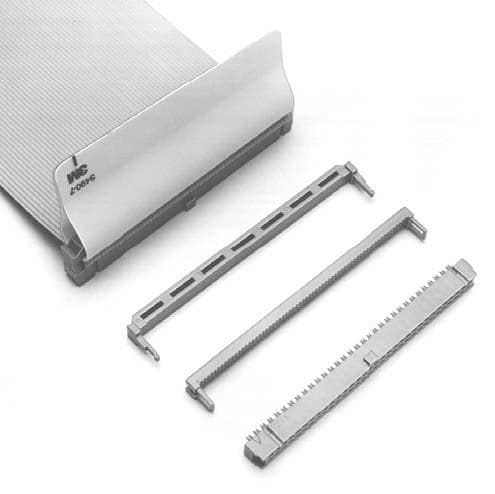

3M Electronic Solutions Division 7964-6500EC Ribbon Cable 64P WIREMOUNT SOCKET
Model7964-6500EC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm (0.1 in)
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 1.300 g
Housing Color: Gray
Latching Type: Unlatched
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 64 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
