- Technical parameters:
- Micro pulse module P1:
Test voltage: 3-600 V
Test voltage: Negative
Rise time Tr:
0.5 us – 1 us
1.5 us – 3 us
No load
Duration Td:
50 us 土20% no load
12 us 土20% 2 ohm matching load
1 ms 土20% no load
1 ms 土20% 50 ohm matching load
2 ms土20% no load
1.5 ms土20% 10 ohm matching load
0.2 ms 土20% no load
0.3 ms 土20% no load
0.5 ms土20% no load
Source impedance: 2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω
Number of test : 1-9999
DUT voltage monitoring: 10:1
DUT current monitoring: 10 A:1 V
Pulse interval: 0.2 s-60 s (the shortest interval depends on output voltage)
Coupling mode: ICC,DCC (50 μs 土20% no load waveform)
- Micro pulse module P2a:
Test voltage: 3-200 V
Test voltage: Positive
Rise time Tr:
0.5 us – 1 us
1.5 us – 3 us
No load
Duration Td:
50 us 土20% no load
12 us 土20% 2 ohm matching load
1 ms 土20% no load
1 ms 土20% 50 ohm matching load
2 ms土20% no load
1.5 ms土20% 10 ohm matching load
0.2 ms 土20% no load
0.3 ms 土20% no load
0.5 ms土20% no load
Source impedance: 2 Ω, 4 Ω, 10 Ω, 20 Ω, 30 Ω, 50 Ω
Number of test: 1-9999
DUT voltage monitoring: 10:1
DUT current monitoring: 10 A:1 V
Pulse interval: 0.2 s-60 s (the shortest interval depends on output voltage)
Coupling mode: ICC, DCC
- EFT/Burst module P3a/3b:
Test voltage: 25-700 V
Polarity: P3b positive, P3a negative
Rise time Tr:
5 ns土30% into 50 ohm load
5 ns土30% into 1,000 ohm load
Duration Td:
150 ns - 45/+45 ns into 50 ohm load
150 ns - 45/+45 ns into 1,000 ohm load
Source impedance: 50 Ω
Pulse number: 1-200
Burst interval: 50 ms-999 ms
Pulse frequency: 0.1 kHz-200 kHz
Test duration: 1 s-50000 s
Coupling mode: CCC, DCC
Output: Direct output: By 50 Ω coaxial connector (for test connected to capacitance coupling clamp）
- General parameters
Mains supply: AC 110/220 V，土10%，45-65 Hz
Environment temperature: 15 ℃ - 35 ℃
Relative humidity: 35%-85%RH（no condensing）
Dimension:
Output current 30 A: 4U
Output current 60 A and 100 A: 6U
Output current 200 A: 8U
Weight : Approx. 20 kg
Trigger: Automatic, manual
Network: Internal CDN 60 V/30 A current up to 200 A
Input:
DUT supply: DC voltage from APS, APG or other DC source

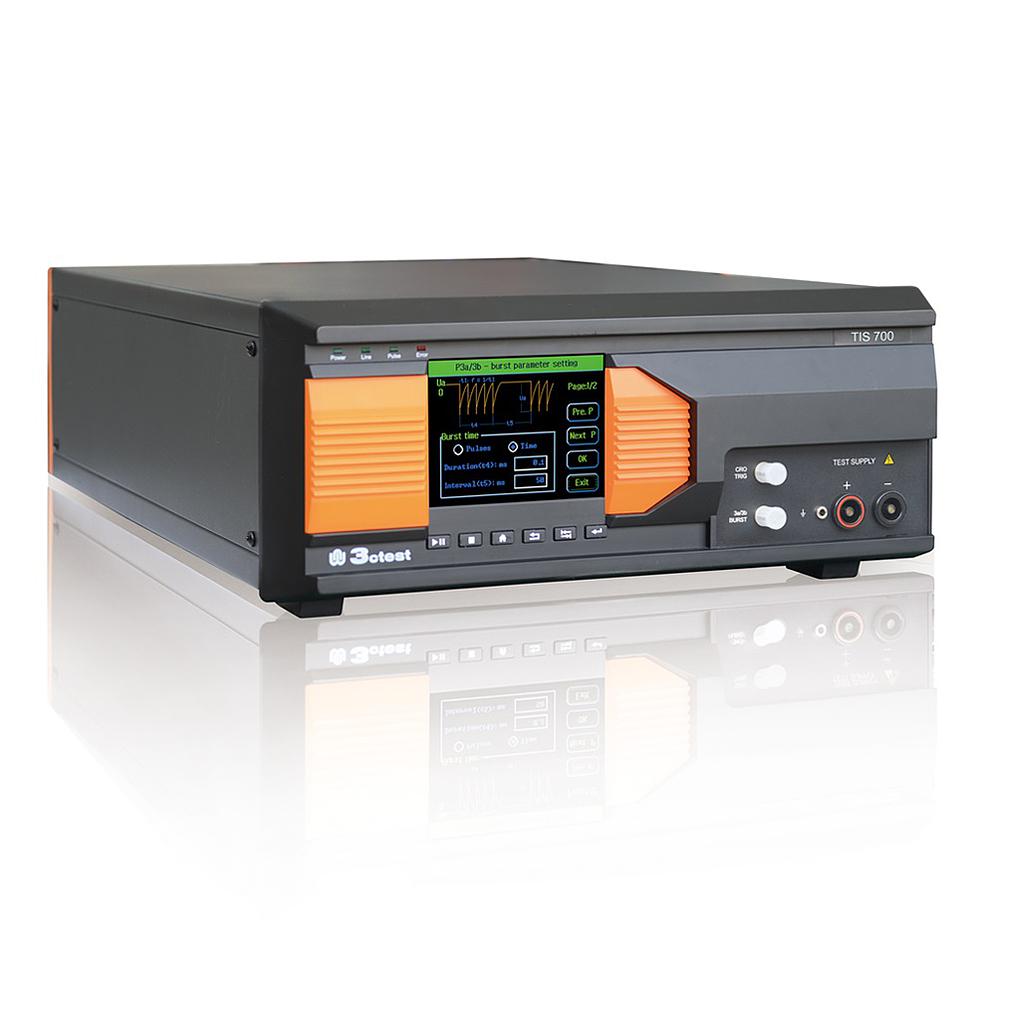

Pulse 5,7: TIS 700 network superimposing Pulse 5 and Pulse 7
Output:
LDS200 input: Central DUT output port
Coaxial output port: To connect capacitance coupling clamp as per ISO7637-3
